Taylor Water Lift Mufflers


Taylor Water Lift Mufflers are non-corrosive and durable. Manufactured using vinylester resins, Taylor Marine Exhaust mufflers provide excellent exhaust noise reduction. Available in an extensive range of shapes, sizes and inlet/outlet configurations.

  • Equally effective performance when installed above or below the waterline.
  • Outstanding silencing characteristics and performance in all boat types from pleasure craft, to sailing yachts, to ocean-going commcercial vessels.
  • We specialise in one off custom designs and can manufacture any size and configuration to meet your specific needs. Email today for a quote.

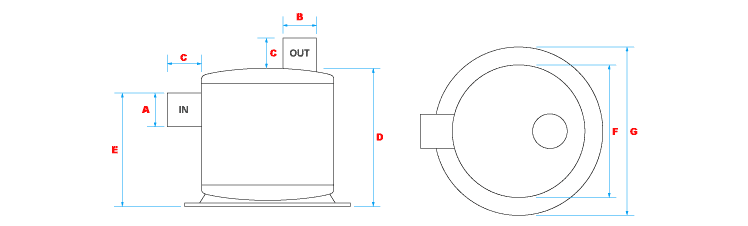

Taylor Water Lift Side In Top Out
  A B C D E F G
  Product No
INLET OD
OUTLET OD
IN/OUT LENGTH
HEIGHT
INLET HEIGHT
DIAMETER
BASE DIAMETER
  Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm
1001
1002
1003
1004
1005
1006
1007
1008
1009
1010
1011
1012
1013
1014
1015
1016
1017
1018
1019
1020
1021
1022
1023
1024
1025
1026		 1 1/2
1 3/4
2
1 1/2
1 3/4
2
2 1/2
1 3/4
2
2 1/2
3
3 1/2
4
2
2 1/2
3
3 1/2
4
4 1/2
5
6
5
6
8
8
10		 38
45
51
38
45
51
64
45
51
64
76
89
102
51
64
76
89
102
114
127
152
127
152
203
203
254		 1 1/2
1 3/4
2
1 1/2
1 3/4
2
2 1/2
1 3/4
2
2 1/2
3
3 1/2
4
2
2 1/2
3
3 1/2
4
4 1/2
5
6
5
6
8
8
10		 38
45
51
38
45
51
64
45
51
64
76
89
102
51
64
76
89
102
114
127
152
127
152
203
203
254		 3
3
3
3
3
3
3
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
4 1/2
4 1/2
4 1/2
4 1/2
4 1/2
4 1/2
4 1/2
4 1/2
5
5
5
5
5		 76
76
76
76
76
76
76
89
89
89
89
89
89
114
114
114
114
114
114
114
114
127
127
127
127
127		 6 3/4
6 3/4
6 3/4
9 3/8
9 3/8
9 3/8
9 3/8
11 3/8
11 3/8
11 3/8
11 3/8
11 3/8
11 3/8
13 5/8
13 5/8
13 5/8
13 5/8
13 5/8
13 5/8
13 5/8
13 5/8
18
18
18
23
23		 171
171
171
238
238
238
238
289
289
289
289
289
289
346
346
346
346
346
346
346
346
457
457
457
584
584		 5 3/8
5 3/8
5 3/8
7 1/4
7 1/4
7 1/4
7 1/4
9 1/8
9 1/8
9 1/8
9 1/8
9 1/8
9 1/8
11 1/4
11 1/4
11 1/4
11 1/4
11 1/4
11 1/4
11 1/4
11 1/4
15
15
15
20
20		 136
136
136
184
184
184
184
232
232
232
232
232
232
286
286
286
286
286
286
286
286
381
381
381
508
508

6 1/4
6 1/4
6 1/4
8 3/4
8 3/4
8 3/4
8 3/4
10 1/2
10 1/2
10 1/2
10 1/2
10 1/2
10 1/2
12 3/4
12 3/4
12 3/4
12 3/4
12 3/4
12 3/4
12 3/4
12 3/4
17 1/4
17 1/4
17 1/4
21 1/4
21 1/4

 158
158
158
222
222
222
222
267
267
267
267
267
267
324
324
324
324
324
324
324
324
438
438
438
540
540		 8
8
8
11
11
11
11
13
13
13
13
13
13
15
15
15
15
15
15
15
15
18 1/2
18 1/2
18 1/2
18 1/2
18 1/2 		203
203
203
279
279
279
279
330
330
330
330
330
330
381
381
381
381
381
381
381
381
470
470
470
470
470
These are standard sizes. Taylor Marine Exhaust can design and manufacture any size and configuration to suit your requirements.

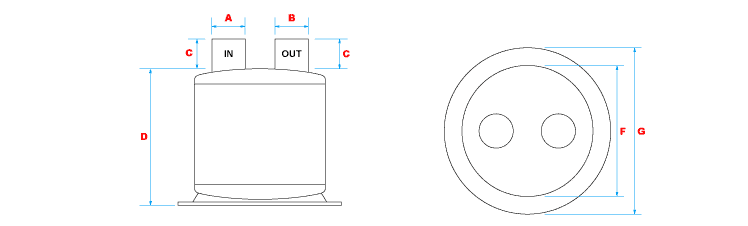

Taylor Water Lift TOP In Top Out
  A B C D F G
  Product No
INLET OD
OUTLET OD
IN/OUT LENGTH
HEIGHT
DIAMETER
BASE DIAMETER
  Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm
2001
2002
2003
2004
2005
2006
2007
2008
2009
2010
2011
2012
2013
2014
2015
2016
2017
2018
2019
2020
2021		 1 1/2
1 3/4
2
1 1/2
1 3/4
2
2 1/2
1 3/4
2
2 1/2
3
3 1/2
2
2 1/2
3
3 1/2
4
4 1/2
5
6
8
 38
45
51
38
45
51
64
45
51
64
76
89
51
64
76
89
102
114
127
152
203		 1 1/2
1 3/4
2
1 1/2
1 3/4
2
2 1/2
1 3/4
2
2 1/2
3
3 1/2
2
2 1/2
3
3 1/2
4
4 1/2
5
6
8		 38
45
51
38
45
51
64
45
51
64
76
89
51
64
76
89
102
114
127
152
203		 3
3
3
3
3
3
3
3 1/2
3 1/2
3 1/2
3 1/2
3 1/2
4 1/2
4 1/2
4 1/2
4 1/2
4 1/2
4 1/2
5
5
5		 76
76
76
76
76
76
76
89
89
89
89
89
114
114
114
114
114
114
127
127
127		 6 3/4
6 3/4
6 3/4
9 3/8
9 3/8
9 3/8
9 3/8
11 3/8
11 3/8
11 3/8
11 3/8
11 3/8
13 5/8
13 5/8
13 5/8
13 5/8
13 5/8
13 5/8
18
18
23		 171
171
171
238
238
238
238
289
289
289
289
289
346
346
346
346
346
346
457
457
584

6 1/4
6 1/4
6 1/4
8 3/4
8 3/4
8 3/4
8 3/4
10 1/2
10 1/2
10 1/2
10 1/2
10 1/2
12 3/4
12 3/4
12 3/4
12 3/4
12 3/4
12 3/4
17 1/4
17 1/4
21 1/4

158
158
158
222
222
222
222
267
267
267
267
267
324
324
324
324
324
324
438
438
540		 8
8
8
11
11
11
11
13
13
13
13
13
15
15
15
15
15
15
18 1/2
18 1/2
18 1/2 		203
203
203
279
279
279
279
330
330
330
330
330
381
381
381
381
381
381
470
470
470
These are standard sizes. Taylor Marine Exhaust can design and manufacture any size and configuration to suit your requirements.

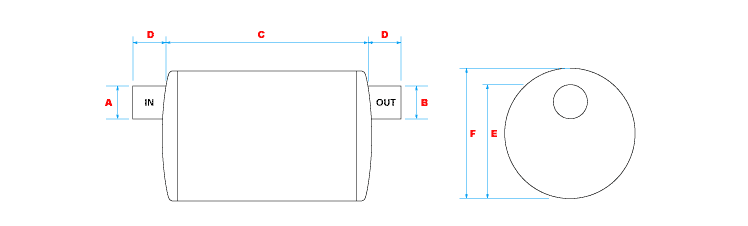

Taylor Water Lift INLINE
  A B C D E F
  Product No
INLET OD
OUTLET OD
LENGTH
IN/OUT LENGTH
IN/OUT HEIGHT
DIAMETER
  Inch mm Inch mm Inch mm Inch mm Inch mm Inch mm
3001
3002
3003
3004
3005
3006
3007
3008
3009
3010
3011
3012
3013
3014
3015
3016
3017
3018		 1 1/2
1 3/4
2
1 3/4
2
2 1/2
3
2
2 1/2
3
3 1/2
4
4
4 1/2
5
6
6
8
 38
45
51
45
51
64
76
51
64
76
89
102
102
114
127
152
152
203		 1 1/2
1 3/4
2
1 3/4
2
2 1/2
3
2
2 1/2
3
3 1/2
4
4
4 1/2
5
6
6
8		 38
45
51
45
51
64
76
51
64
76
89
102
102
114
127
152
152
203		 10
10
10
13
13
13
13
15
15
15
15
15
18
18
18
18
24
24		 254
254
254
330
330
330
330
381
381
381
381
381
457
457
457
457
610
610		 3
3
3
3
3
3
3
4
4
4
4
4
4 1/2
4 1/2
4 1/2
5
5
5		 76
76
76
76
76
76
76
102
102
102
102
102
114
114
114
127
127
127

5 3/8
5 3/8
5 3/8
7 3/4
7 3/4
7 3/4
7 3/4
9 3/8
9 3/8
9 3/8
9 3/8
9 3/8
11 3/4
11 3/4
11 3/4
11 3/4
16 1/8
16 1/8

137
137
137
197
197
197
197
238
238
238
238
238
298
298
298
298
410
410
 6 1/4
6 1/4
6 1/4
8 3/4
8 3/4
8 3/4
8 3/4
10 1/2
10 1/2
10 1/2
10 1/2
10 1/2
12 3/4
12 3/4
12 3/4
12 3/4
17 1/4
17 1/4 		158
158
158
222
222
222
222
267
267
267
267
267
324
324
324
324
438
438
These are standard sizes. Taylor Marine Exhaust can design and manufacture any size and configuration to suit your requirements.
